How Do Twill Weave and UD Carbon Fiber Tubes Compare for Strength and Use?

Carbon fiber tubing is a critical advanced composite material favored in sectors like aerospace and high-performance sporting goods for its exceptional strength-to-weight characteristics. Two predominant variants are twill weave and unidirectional (UD) carbon fiber tubes, each possessing distinct structural and performance attributes.

Visual Distinction:

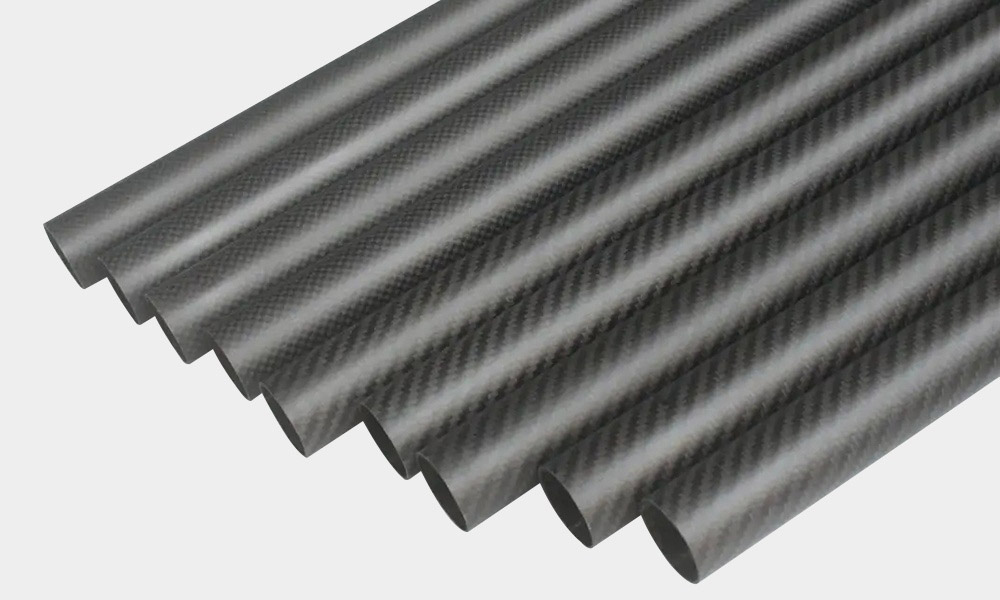

Twill weave tubes are immediately recognizable by their signature checkerboard pattern, which results from fibers interlaced in a regular diagonal weave. This structure provides a distinctive and often desirable aesthetic. In contrast, UD carbon fiber tubes have a much more subdued appearance, with all filaments running parallel along the tube’s length, giving them a uniform, striated look.

Structural Fiber Orientation:

The core difference lies in the architecture of the carbon fibers. Twill weave involves crossing fibers over and under each other, typically at a 45-degree angle, creating an interlocking fabric. This design offers balanced properties in multiple directions. UD tubes, however, feature over 90% of their fibers aligned in a single, uninterrupted direction (longitudinally), which maximizes strength and rigidity along that specific axis.

Performance and Application Suitability:

This fundamental difference in construction dictates their optimal use:

*Twill Weave Tubes excel in applications requiring multi-directional strength. Their woven structure provides excellent resistance to twisting (torsion) and handles off-axis impacts and crushing forces very well, making them a robust choice for products like bicycle frames, rackets, and protective equipment.

*UD Tubes are engineered for ultimate directional performance. They deliver superior tensile strength and maximal stiffness along the length of the tube for a given weight, offering an unmatched stiffness-to-weight ratio in one direction. This makes them ideal for components where loads are predictable and uniaxial, such as drone arms, robotic arms, and structural supports in aircraft.

Conclusion:

The choice between twill and UD carbon fiber tubes is a trade-off between balanced durability and focused performance. Twill weave is the go-to for general toughness and torsional resistance, while UD is preferred for applications demanding peak stiffness and strength in a primary direction.
