PBO filament
Product detail
PBO filament is an aromatic heterocyclic fiber composed of rigid functional units and with a very high degree of orientation along the fiber axis. This structure gives it ultra-high modulus, ultra-high strength, and excellent application properties such as temperature resistance, flame retardancy, chemical stability, impact resistance, wave transmission, and insulation. It is a new generation of super fiber used in aerospace, national defense, rail transportation, electronic communications and other fields after aramid fiber.
| PBO filament fiber | Unit | Item | ||
| XCHS-11 | XCHS -12 | XCHM | ||
| Appearance | / | Light yellow | Light yellow | Dark yellow |
| Density | g/cm3 | 1.54 | 1.54 | 1.56 |
| Line density | dtex | 278 555 1110 1670 | 278 555 1110 1670 | 273 545 1090 1640 |
| Moisture regain | % | 4 | 4 | 2 |
| Oil content | % | 0～2 | 0～2 | 0～2 |
| Tensile strength | cN/dtex | ≥36 | ≥30 | ≥36 |
| GPa | ≥5.6 | ≥4.7 | ≥5.6 | |
| Tensile modulus | cN/dtex | ≥1150 | ≥850 | ≥1720 |
| GPa | ≥180 | ≥130 | ≥270 | |
| Elongation at break | % | 3.5 | 3.5 | 2.5 |
| Decomposition temperature | °C | 650 | 650 | 650 |
| LOI (Limiting Oxygen Index) | % | 68 | 68 | 68 |

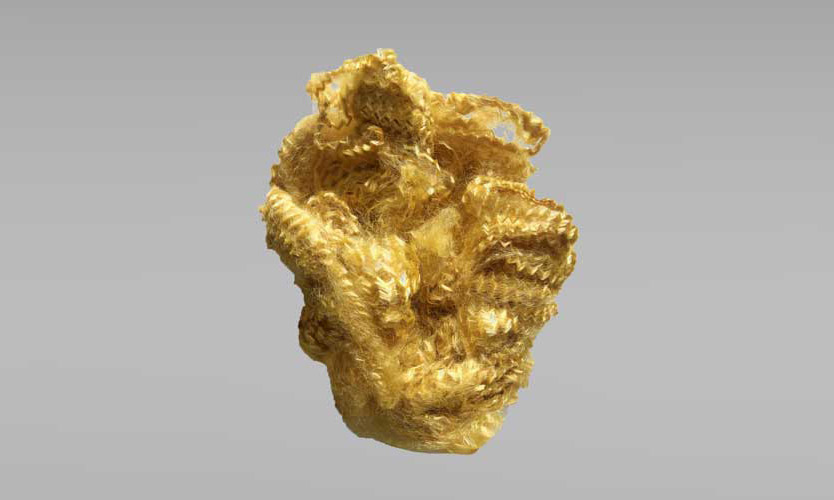

PBO short fiber
The product is made of PBO filaments, which are curled, shaped and cut by special equipment. It has high strength, high temperature resistance, flame retardancy, good spinnability and cutting resistance. It has broad market prospects in the fields of special fabrics, firefighting suits, high temperature filter belts, heat-resistant belts, heat-resistant and shock-absorbing materials for aluminum and glass processing.
| PBO short fiber | Unit | Index |
| Fiber chemical composition | / | PBO |
| Fiber monofilament linear density | dtex | 1.7 |
| Fiber length | mm | 38、51、76 |
| Moisture content | % | 4 |
| Oil content | % | 0～2 |
| Note: Products can be customized according to customer needs | ||

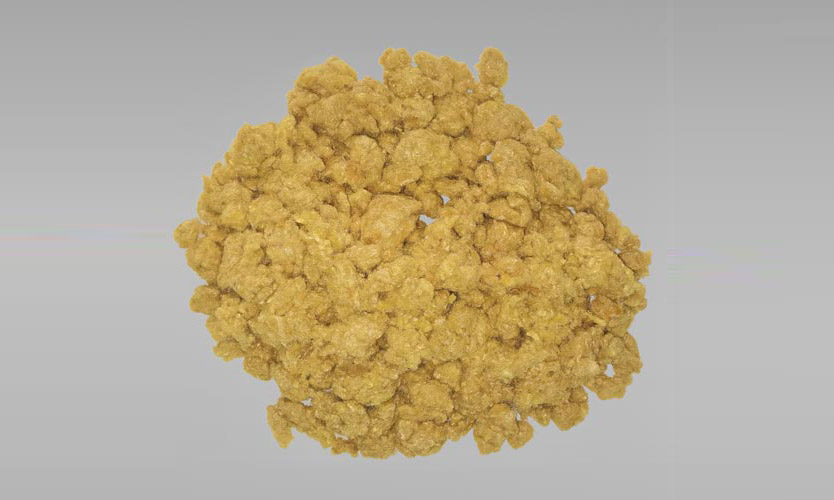

PBO Ultra Short Cut
Using PBO filament as raw material, by introducing first-class short-cut equipment from abroad and using the company’s original short-cut technology, it is possible to process ultra-short-cut fibers within 0.5mm. The product has uniform length, high temperature resistance, flame retardancy, wear resistance, and excellent dielectric properties. It can be used for filling and reinforcing materials of engineering plastics and reinforcing materials for sealing gaskets, etc.
| PBO chopped | Unit | Index |
| Fiber chemical composition | / | PBO |
| Monofilament density | dtex | 1.7 |
| Fiber length | mm | 3 or 4 |
| Customized | ||
| Moisture content | % | 4 |
| Oil content | % | 0～2 |
| Dispersion | / | Good |
| Note: Products can be customized according to customer needs | ||
