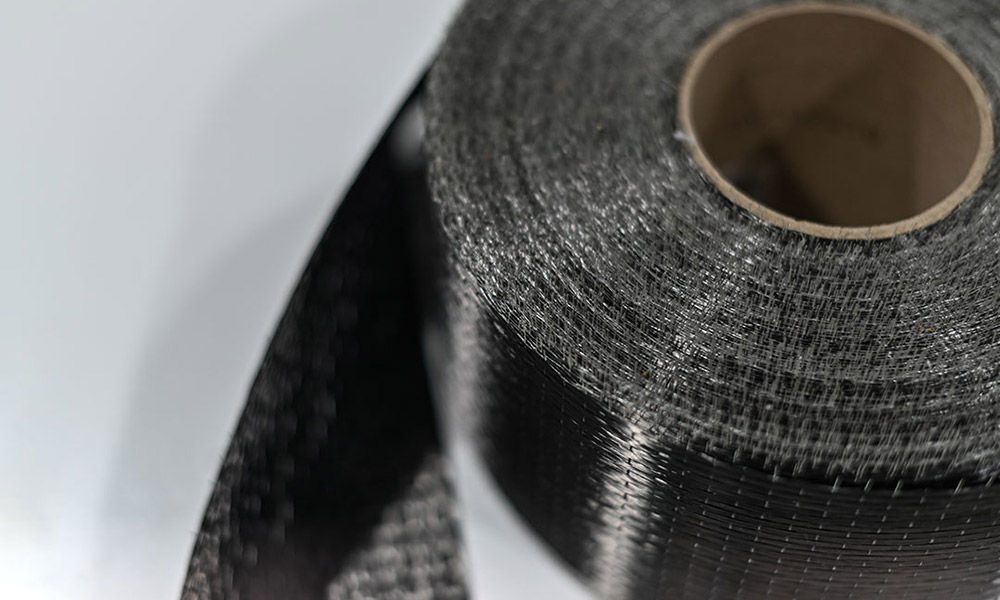

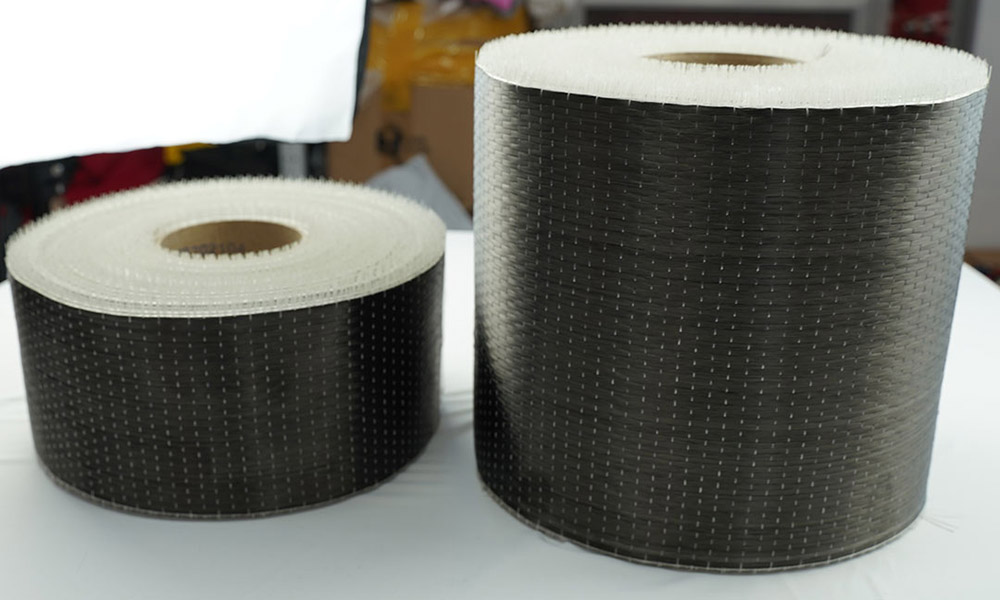

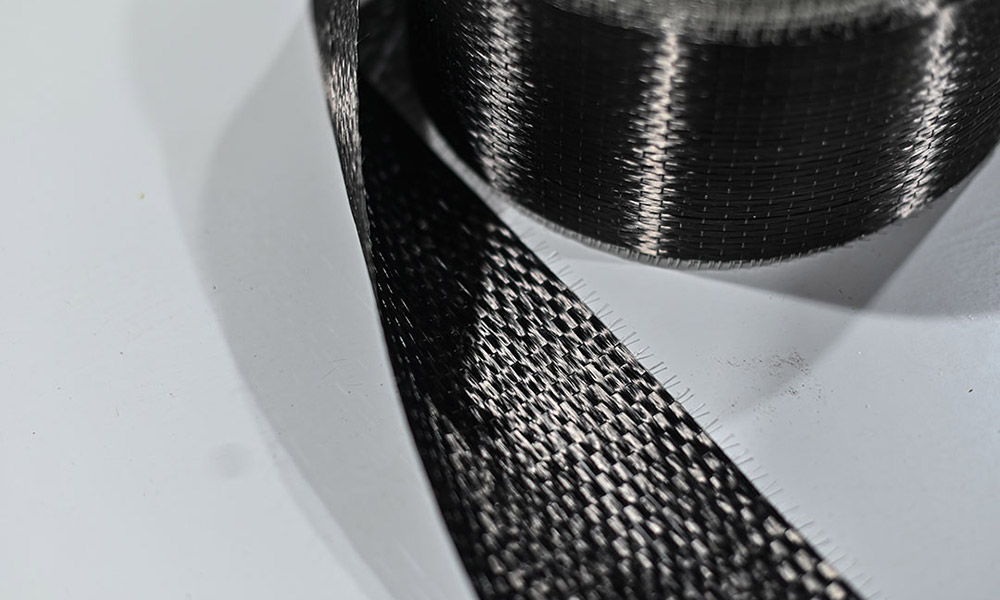

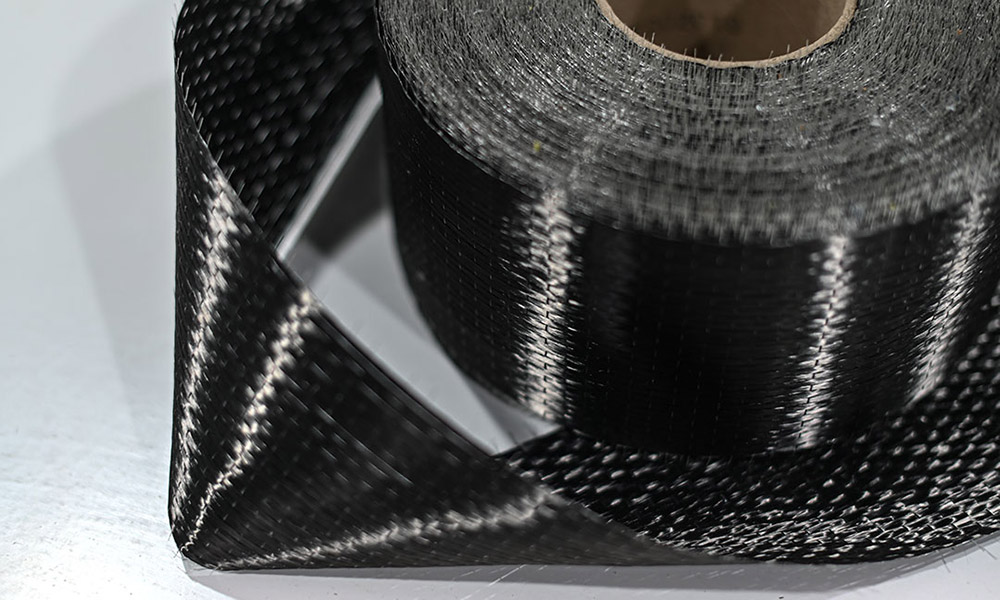

Unidirectional Carbon Fiber Fabric is a fabric made of single carbon fiber fibers arranged in parallel and through a weaving process. Unlike traditional interwoven woven fabrics, the fibers of unidirectional woven fabrics are arranged in only one direction. This structure significantly enhances its mechanical properties in a certain direction and is often used in applications that require high strength and light weight.

Characteristics of Unidirectional Carbon Fiber Fabric

• High strength and rigidity: Since the fibers are arranged in one direction, the strength and rigidity of unidirectional carbon fiber fabrics reach their maximum in this direction. This enables it to withstand greater tension and pressure.
• Lightweight:Carbon fiber itself is lighter than steel, and unidirectional woven fabrics are lighter than traditional woven fabrics because they do not have excess interwoven fibers, making them suitable for structures that need to reduce weight.
• Excellent tensile resistance: In the direction of fiber arrangement, the tensile strength of unidirectional carbon fiber fabrics is very high, which makes it very suitable for structures that withstand tension and bending.
• Directional mechanical properties:The performance of unidirectional carbon fiber fabrics is mainly concentrated in the direction of fiber arrangement, so its mechanical properties are uneven. In the direction perpendicular to the fiber arrangement, its strength and rigidity are relatively low.
• Convenient construction: The construction process of carbon fiber unidirectional cloth is relatively simple, and it can be used together with supporting resins and other adhesives to form a complete carbon fiber composite material system. This construction method is not only convenient and fast, but also can effectively improve the efficiency of reinforcement and repair work.

Application of carbon fiber unidirectional woven fabric

Due to the excellent performance of carbon fiber unidirectional woven fabric in a specific direction, it is widely used in many occasions requiring high performance, light weight and high strength:

• Aerospace:Structural materials for aircraft and spacecraft, especially in parts that need to reduce weight and increase strength. Carbon fiber unidirectional woven fabric can enhance the tensile strength of structures such as wing beams and fuselage frames.
• Automotive industry: Carbon fiber unidirectional woven fabric is used in the body, chassis, suspension system and other parts of racing cars, supercars and electric vehicles to increase strength and reduce weight, and improve vehicle performance and handling.
• Sports equipment: Such as golf clubs, tennis rackets, bicycle frames, etc., carbon fiber unidirectional woven fabric is widely used in sports equipment that requires durability and high performance due to its high strength and light weight.
• Ship and marine engineering:Carbon fiber unidirectional woven fabric is used in hulls, boat bodies, submersibles and other parts to enhance structural strength, especially in parts that are subjected to large external forces above or below the water.

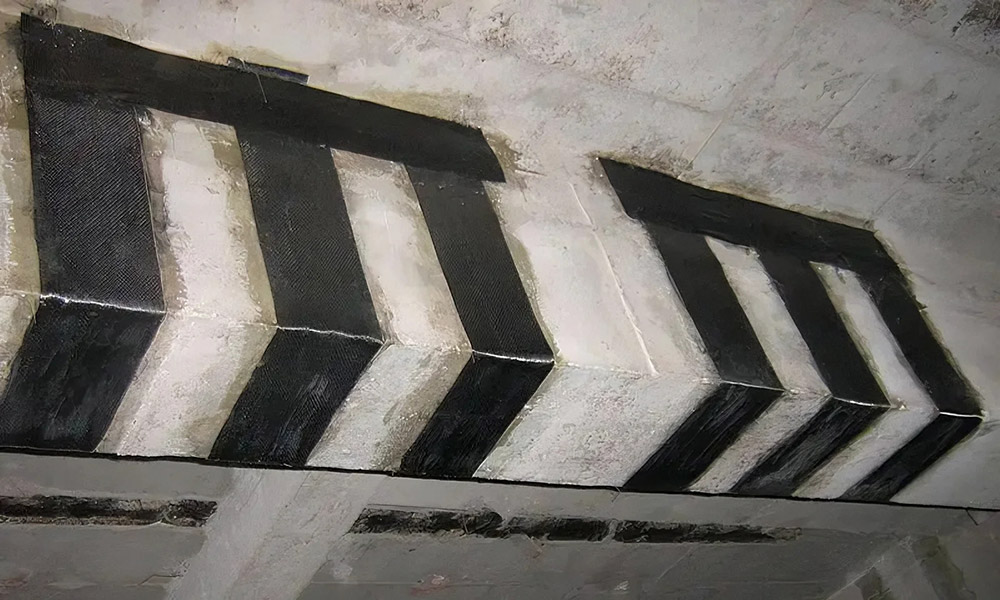

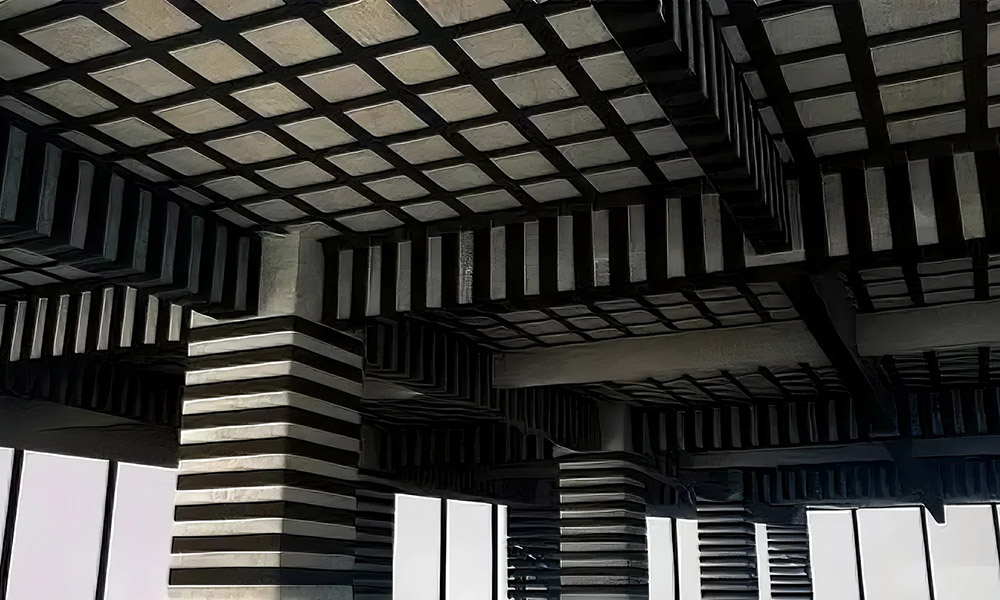

• Building reinforcement: Carbon fiber unidirectional cloth is also widely used in the field of building reinforcement. By using unidirectional cloth to reinforce and repair concrete structures, the earthquake and wind resistance of the structure can be effectively improved, and the service life of the building can be extended.
• Wind power generation: Wind turbine blades usually use carbon fiber unidirectional woven fabrics to increase the strength and durability of the blades, reduce the weight of the wind turbine and improve its efficiency.

Production process

The production process of carbon fiber unidirectional woven fabrics usually includes the following steps:

• Manufacturing of carbon fiber:First, organic materials (such as polyacrylonitrile) are converted into carbon fibers through a high-temperature carbonization process.
• Unidirectional weaving:The carbon fibers are arranged in a specified direction, and parallel fibers are neatly arranged and woven into cloth. During the production process, there may be impregnation of resin or other additional materials to enhance the bonding and stability of the material.
• Resin impregnation and curing:In order to make the carbon fiber unidirectional woven fabric into the final composite material, it is usually necessary to immerse it in epoxy resin or other resins, and after curing treatment, a composite material with specific properties is formed.

Advantages of carbon fiber unidirectional woven fabric

• High strength and rigidity:Carbon fiber unidirectional woven fabric has extremely high tensile strength in the direction of fiber arrangement and can withstand large loads.
• Lightweight: The density of carbon fiber material itself is low, so carbon fiber unidirectional woven fabric can provide high strength while reducing the overall weight of the structure.
• Directional performance: Its mechanical properties can be optimized according to the needs, so that it performs particularly well in the direction of force.
• Good fatigue resistance:Carbon fiber unidirectional woven fabric has good fatigue resistance and can withstand repeated loads for a long time without breaking or degradation.
